Flanges

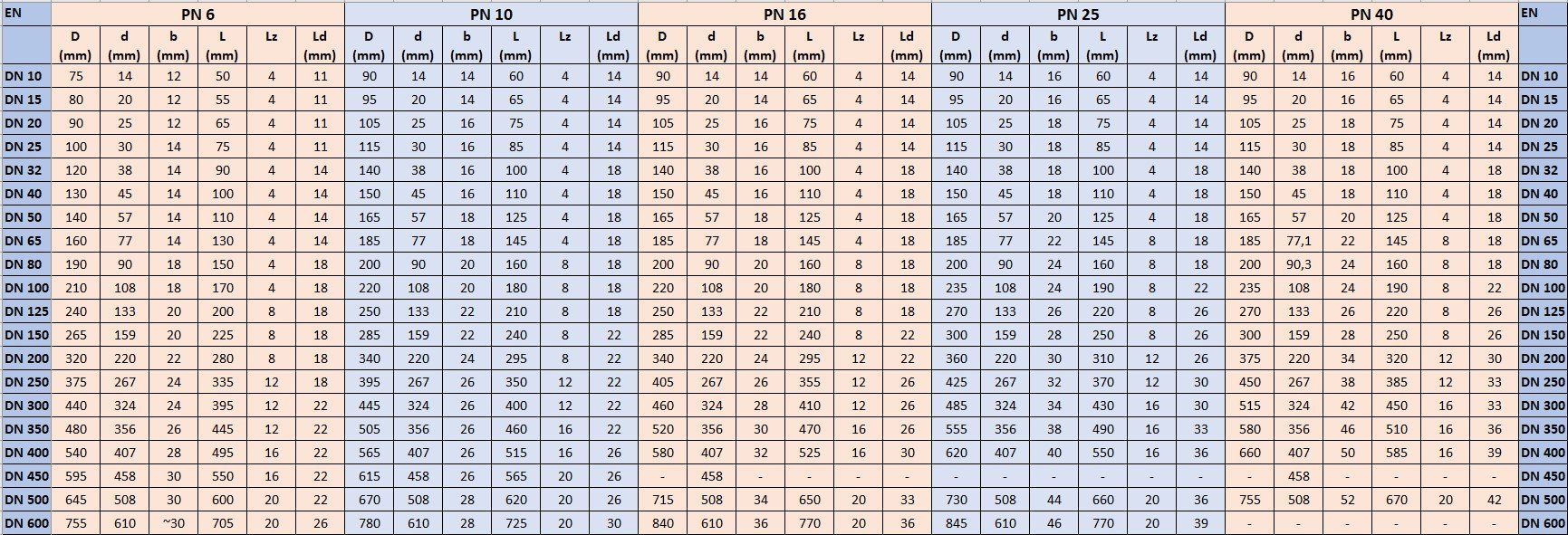

Flange dimensions

Flanges are available in different types of steel in different designs and dimensions. Here you will find a composition of popular sizes.


Type DIN
Smooth flanges 1 2573 | 2576
Loose flanges 2 2641 | 2642 | 2655 | 2656
Smooth alliances 2 2641 | 2642 | 2655 | 2656
Loose flanges 4 2673 - 2676
Blind flanges 5 2527
Vorschweißflansche 11 2627 - 2638
Thread flanges 12 2558 | 2565 - 2569
Slide-over flanges 12 86029 | 86030
Vorschweißbunde 34 2673 - 2676
